United Seats Rancher LGV95/H152
)
)
)
)
United Seats Rancher LGV95/H15

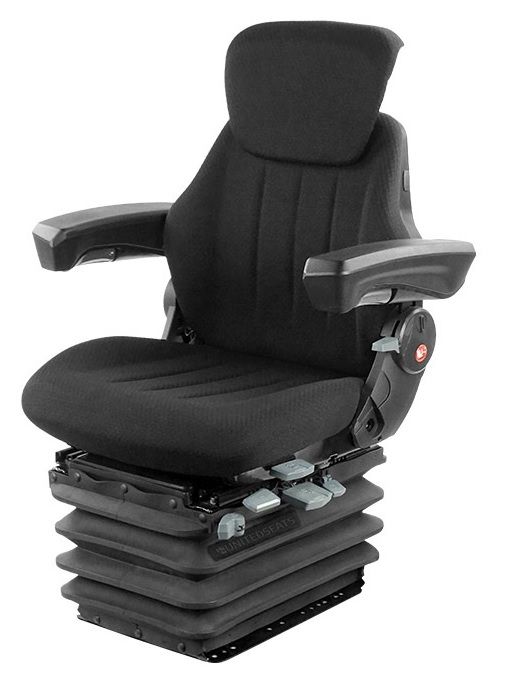

The Rancher LGV95/H15 is a comprehensive air suspension seat from United Seats, suitable for agricultural machinery such as large tractors and combines, as well as other vehicles such as construction machinery and other industrial vehicles.
It features integrated controls and powered adjustment for weight and height settings. Its cushions provide optimum comfort levels for operators, and the seat has a wide range of adjustments to enhance cab ergonomics. For farmers, the 20 degree swivel feature assists with rear-view activities such as ploughing, as well as helping with ingress and egress of the cab.
The horizontal suspension reduces the buffeting motion when pulling a trailer or other implement behind the tractor. It has a variety of external mounting holes to facilitate installations for both OEMs and aftermarket users.
Specifications:
- Air suspension 12V
- 120mm vertical suspension stroke
- 80mm height adjustment
- 50-135kg weight adjustment
- Adjustable damper
- Fore/aft isolator
- Lumbar support
- Slide rail adjustment - 180mm
- ±20° swivel for rear viewing
- Backrest angle adjustment
- Adjustable backrest extension
- Adjustable armrests
- Document box
- Anthracite fabric
Options:
- Operator presence switch
- Static or retractable lap belt
- Waterproof PVC trim
- Waterproof protective seat cover
