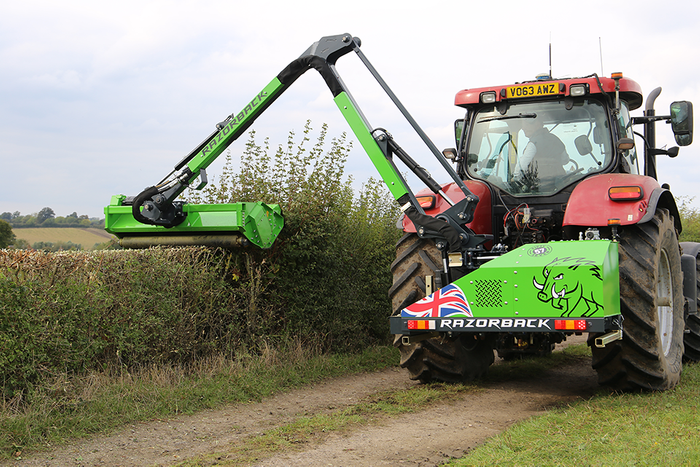

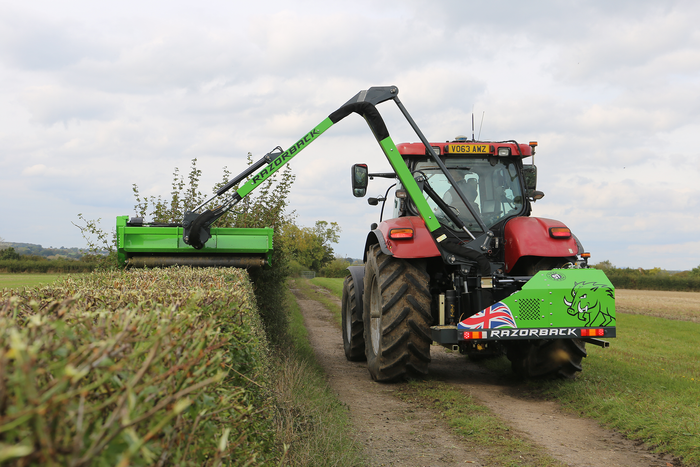

Razorback 57 Reach Mower

Compact design

Engineered with a compact tank to enhance operator visibility, the sleek and uncomplicated design not only simplifies maintenance but also improves airflow, ensuring efficient heat dissipation for optimal performance.

The compact footprint also improves balance, ensuring better control, especially when working on uneven terrain or at varying angles. This feature ultimately leads to a smoother, 57 Series Reach Mower more efficient cutting experience, improving both safety and productivity.

ACI : Active Contour Intelligence

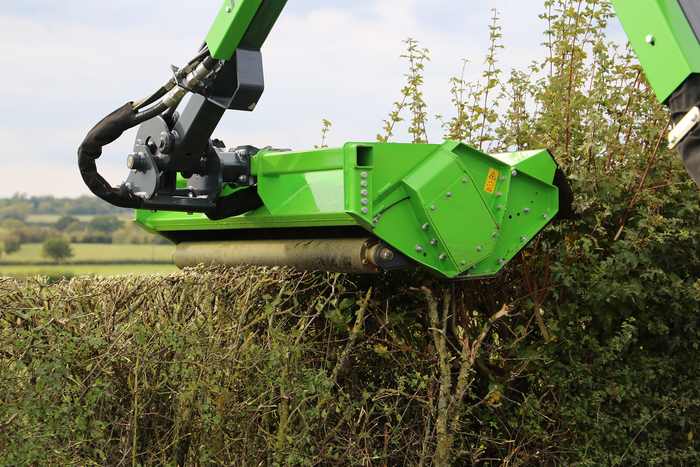

As standard the Razorback 57 is available with a 1.2m or 1.5m flail head with soft start rotor and heavy duty forged hammer flails offering an exceptional cut across both hedge and verge. In addition, for operators looking to seamlessly control cutting height on the go, the head can be configured with Razorback’s Active Contour Intelligence.

The Razorback ACI system is an intelligent active suspension that accurately tracks and reacts to the contours of the verge for hands-free height adjustment.

Coveted by verge mowing contractors, Razorback’s ACI technology significantly increases output and productivity while reducing operator fatigue.

The ACI system features a spring suspended rear roller which actively tracks the contours of the ground and adjusts the cutting height according to the parameters set by the operator. This intelligent system ensures operators are in full control of the reaction of the head and can set the scope of movement accordingly, depending on terrain and level of response required.

Superior Stabilisation

With the Razorback 57’s unique hitch system based on the principles of tensegrity, the hedgecutter is suspended in a state of equilibrium ensuring superior stability across the machine.

This stability translates into a balanced and steady operation, with the hedgecutter no longer acting to twist and lift the tractor link arms which is a common trait of standard 3-point-linkage hitches, and creates a stable relationship between hedgecutter and tractor.

With a series of turnbuckles, setup and adjustment is quick and simple, and allows operators to swiftly and easily swap tractors, or balance the system for optimum control.

Patent application number: 2413276.3
