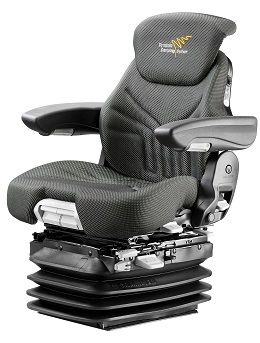

Grammer Maximo Dynamic

Grammer Maximo Dynamic

The new innovative standard for passive seat suspension systems. The Maximo Dynamic ushers in a whole new dimension of passive-suspended seats for mid-size and large tractors. Its newly developed Dynamic Damping System enhances the proven air suspension system to noticeably reduce low-frequency vibrations. At the same time, the system prevents the seat from striking the top and bottom stops during rapid acceleration on extremely rough terrain. This means considerably less strain on the driver and sets new standards of passive suspension comfort, productivity and cost-effectiveness.

Specifications:

• Dynamic damping air suspension system (12V compressor)
• One-touch seat positioning system
• 100mm vertical suspension stroke
• Weight adjustment 50-130kg
• Automatic shock absorber
• Air assisted height adjustment - 80mm
• Automatic weight adjustment
• Horizontal suspension
• Lateral suspension
• Adjustable damper
• Swivel - ±20°
• Slide rail adjustment - 210mm
• Pneumatic air lumbar support
• Seat heating
• Integrated backrest extension
• Backrest angle adjustment
• Adjustable seat cushion length & angle
• Height adjustable and foldable armrests
• Suspension cover
• Document holder
• Wide fabric cushions - 550mm

Accessories:

• Static or retractable lap belt
• Operator presence switch (OPS)
