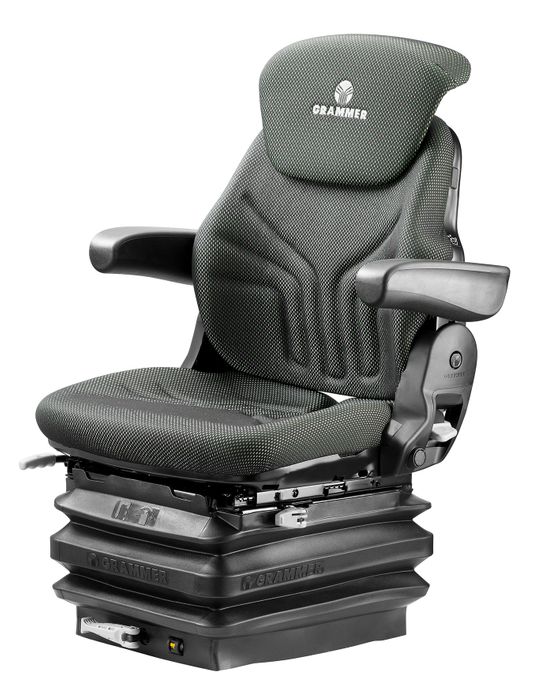

Grammer Maximo Basic
)
)
)
)
)
)
Grammer Maximo Basic
Maximo Basic with mechanical suspension. Suited for standard tractors. In order for a seat with mechanical suspension to be comfortable, it has to be precisely set to the user's weight. The Maximo Basic sets new standards of suspension comfort in this class. The seat height can be set in three steps via a locking mechanism.
Specifications:
- Mechanical suspension
- 100mm vertical suspension stroke
- Weight adjustment 50-130kg
- Non-adjustable shock absorber
- Mechanical height adjustment - 60mm
- Manual weight adjustment
- Fore and aft isolator
- Adjustable damper
- Slide rail adjustment - 210mm
- Mechanical lumbar support
- Backrest angle adjustment
- Height adjustable and foldable armrests
- Suspension cover
- Wide fabric cushions - 480mm
Accessories:
- Static or retractable lap belt
- 180° or 360° turntable
- Horizontal suspension
- Integrated backrest extension
- Seat heating
- Operator presence switch (OPS)
