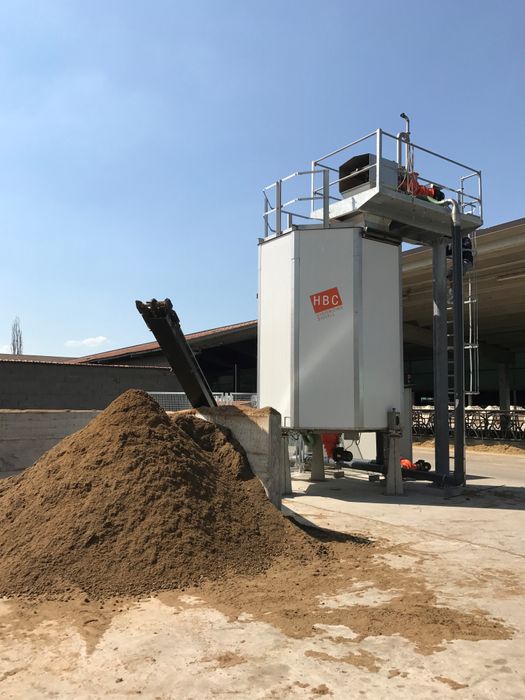

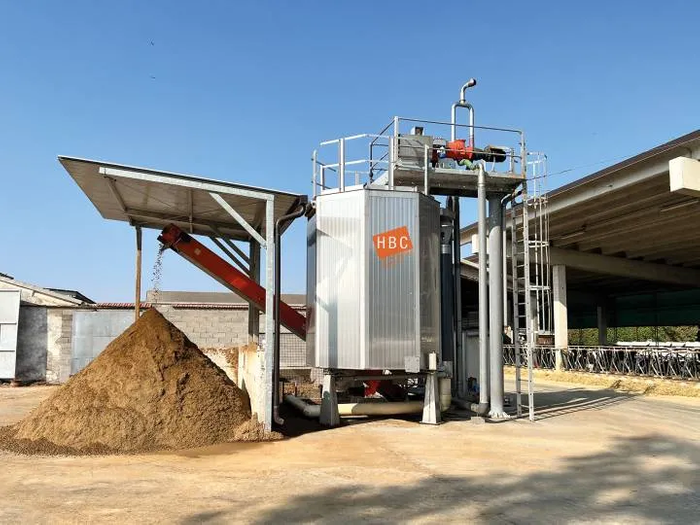

Cri-Man HBC Biocell - Pasteurised Hygienic Bedding
)
)
)
)
Cri-Man's HBC Biocell transforms slurry into comfortable and hygienic pasteurised bedding. It guarantees consistent quality and sanitisation of bedding produced from recycled separated solids, even under the most unfavourable conditions, permitting the substitution of traditional bedding materials.
The Process
The process of biodrying or bio stabilisation occurs inside the HBC biocell: the presence of oxygen (air) supports an aerobic process of biological degradation of organic substances present in cow manure.
The process is highly exothermic and the resulting heat production is used to ensure the hygienisation of the product and to evaporate the water content.
The exothermic biological process means that the material remains at a temperature of 70°C for at least 60 minutes, ensuring pasteurisation.
Operating Performance
- Production: up to 20 t/day of hygienic solids
- Hygienisation: guaranteed pasteurisation system (1 hour at 70°C)
- Drying: up to 55% of dry material (by adjustment of the HRT)
Features
- Economic bedding alternative and slurry management
- Consistent quality
- PLC Controls
- Stainless steel construction
- Monitors process temperature
Benefits
- Consistent quality with an electronic control system
- Financial savings from utilising potentially hazardous slurry as a hygienic cattle bedding alternative
- Low energy consumption - Maximum power consumption 10,5 kW.
- Easy to use - The machine is simple to assemble (install) and comes complete with a “user-friendly” control system.
- Optional remote control - The HBC can be operated from an office PC (temperature, weight, unloaded material, alarm history, etc..)
- Reduced on-site slurry and bedding storage required
- Compact size
- Transportable - The machine is modular so a 20-foot container is sufficient for transport
- Fully repairable
