Capital CRV720 Camera System

Capital CRV720 Camera System

The need for full observation when operating large working vehicles like agricultural and constraction machinery is ever growing, with greater focus on operator safety and the reduction of waste. The Capital range of observation camera systems have been designed specifically for large vehicles operating in tough working conditions to provide a good quality image, whatever the job.

The monitors are designed to be able to withstand the heavy vibrations experienced on vehicles working on rough terrain, and the cameras are built with a fully weatherproof aluminium housing to function in all conditions - day or night!

Our systems have been used for operations including vehicle reversing, trailer hitching, bailing, wagon loading, seed drilling, harvester maneuvering, pallet storing, safety and security.

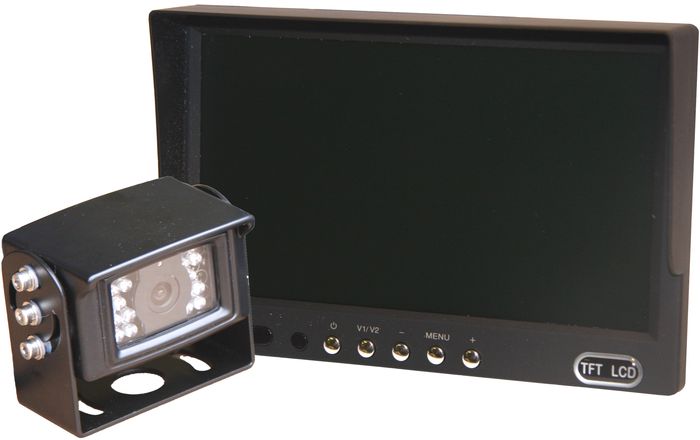

The Capital CRV720 Camera System provides a 7" LCD full colour monitor that can be installed anywhere within the cab with it's self-adhesive monitor mount. The camera has full night-vision capabilities to allow for working any time of the day, and the aluminium housing provides full weather protection.

The kit comes complete with a monitor, camera, 20m camera cable, power cables, mounting brackets and remote control.

CRV720 Specifications:

Monitor:

• 7” colour LCD monitor
• 12-24V operating voltage
• 2 camera input
• Automatic camera switching
• Low reflection display
• Brightness/contrast & colour adjustment
• Reversed view camera picture
• Built-in speaker
• Remote control

Camera:

• Aluminium weatherproof housing
• Automatic LED nightvision
• Wide angle optics (120 degree)
• High resolution with 250,000 pixels
• Electronic brightness adjustment
• Microphone
• 20m cable

Accessories:

• Additional camera
• Additional camera cable lengths
• Trailer lead suzi cable
• Magnetic mount



CRV720 Technical Data:

Monitor:

• Operating Voltage: DC 12-24V
• Power Consumption: 10 watts
• Audio Power Consumption: 1.5 watts
• LCD: 7" colour
• Resolution: 480 x 234 lines

Camera:

• Operating Voltage: DC 12V
• Power Consumption: 2 watts
• Picture Sensor: 1/3" CCD sensor
• Horizontal Viewing Angle: 120 degrees
• Resolution: 480 x RGB x 240
• Aspect Ratio: 16:9
• Light Sensitivity: 0 lux
