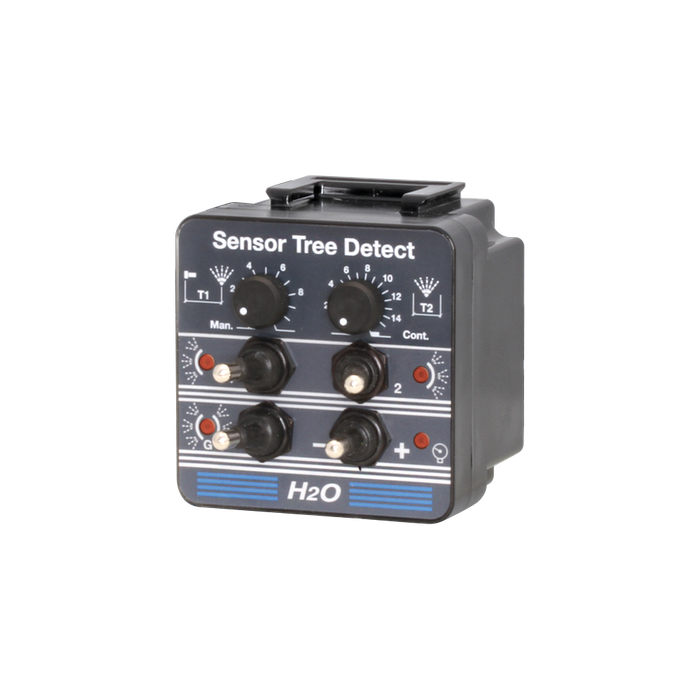

BOX P90 TREE DETECT

The MSB P90 modular control panel is available in a version with control for 2 sections, integrating the management of the general valve and the pressure valve.

Main Functions
ON-OFF Automation: The control panel is equipped with two potentiometers that allow for ON-OFF automation for the sections, using ultrasonic sensors.
Side Control: Possibility to control both the left and right sides.
Selectable Timings: Delay and distribution times (T1 and T2) can be selected at will. Screw Function (continuous wire): By turning the potentiometer clockwise, the operator activates this function; through the two knobs, the operator sets only the delay time between the sensor and the nozzles (T1). The spraying operates based on the plant detection by the sensor.
Manual Function: By turning the potentiometer counterclockwise, the manual function is activated.
