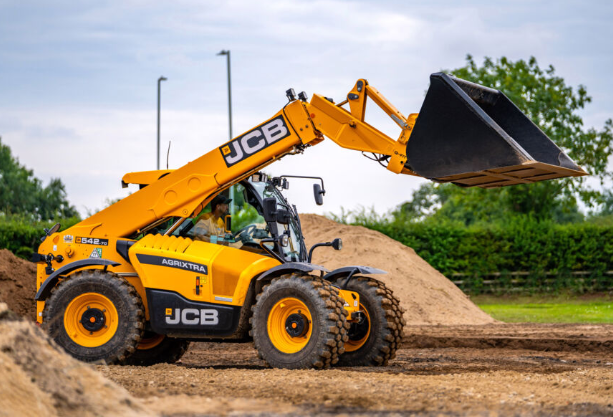

542-70 AGRI XTRA

Our 542-70 Agri Xtra is part of the Stage V Series III telescopic handlers of choice for agriculture. This high performance 150hp (112kW) machine features our best ever cab with our DualTech Variable Transmission.



OUR BEST TRANSMISSIONS.

Our range of transmission options are tailored to your specific agricultural requirements, ranging from TorqueLock, PowerShift, AutoShift and the award winning DualTech Variable Transmission, an optional transmission on the 542-70 Agri Xtra.



OUR BEST ENGINES.

Our 4.8-litre DIESELMAX engine meets the latest EU Stage V regulations with ultra-low emissions, auto-stop technology, low fuel consumption and next generation particulate control. The 542-70 Agri Xtra comes with 150hp (112kW) and 600Nm of torque.



OUR BEST HYDRAULICS.

Our regenerative hydraulics systems, auto bucket rattle, auxiliary venting. boom end dampening and Auto SmoothRide System all form part of the JCB Smart Hydraulics package. Constant flow auxiliary for hydraulically powered attachments and up to 160 litre per minute variable displacement piston pumps.



OUR BEST SAFETY FEATURES.

Our patented Adaptive Load Control System allows the operator to drive seamlessly without hindering productivity and ensuring stability.

Better all-round visibility with a low boom pivot point, excellent right-hand visibility over the engine pod with LED work lights to the front, rear, boom and hitch to optimise visibility in dark conditions.



PRODUCT SPECIFICATIONS.

Lift height - 7.01m

Lift capacity - 4200kg

Lift capacity at full height - 2750kg

Lift capacity at full reach - 1675kg

Forward reach at max height - 0.48m

Reach with 1 tone payload - 3.73m



OUR BEST TRANSMISSIONS.

Our range of transmission options are tailored to your specific agricultural requirments, ranging from TorqueLock, PowerShift, AutoShift and the award winning DualTech Variable Transmission, the tranmission feature in the 542-100 AgriPro.



OUR BEST ENGINES.

Our 4.8-litre DIESELMAX engine meets the lastest EU Stage V regulations with ultra-low emissions, auto-stop technology, low fuel consumption and next generation particulate control. The 542-100 AgriPro comes with 173hp (129kW) and 690Nm of torque.



OUR BEST HYDRAULICS.

Our regenerative hydraulics systems, auto bucket rattle, auxilary venting. boom end dampening and auto SmoothRide System all form part of the JCB Smart Hydraulics package. Constant flow auxiliary for hydraulically powered attachments and up to 160 litre per minute variable displacement piston pumps.



OUR BEST SAFETY FEATURES.

Our patented Adaptive Load COntrol System allows the operator to drive seamlessly without hindering productivity and ensuring stability.

Better all-round visibility with a low bomm pivot point, excellent right hand visibility over the engine pod with LED work lights to the front, rear, boom and hitch to optimise visibility in dark conditions.



PRODUCT SPECIFICATIONS.

Lift height - 9.8m

Lift capacity - 4200kg

Lift capacity at full height - 1800kg

Lift capacity at full reach - 600kg

Forward reach at max height - 2.36m

Reach with 1 tone payload - 5.15m
